Product Information

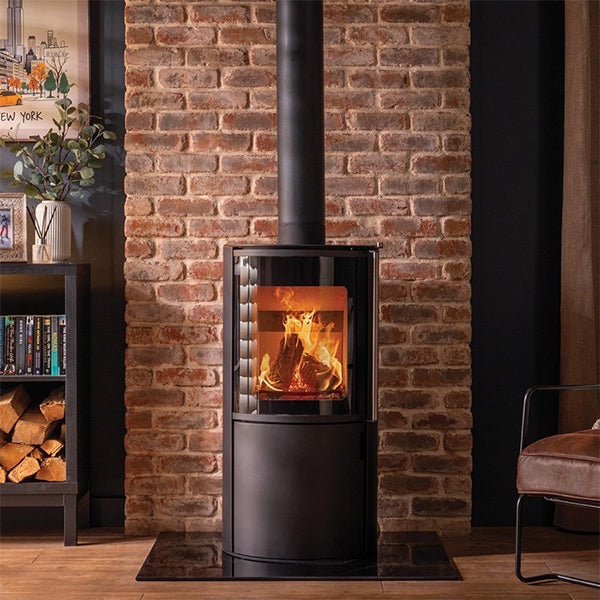

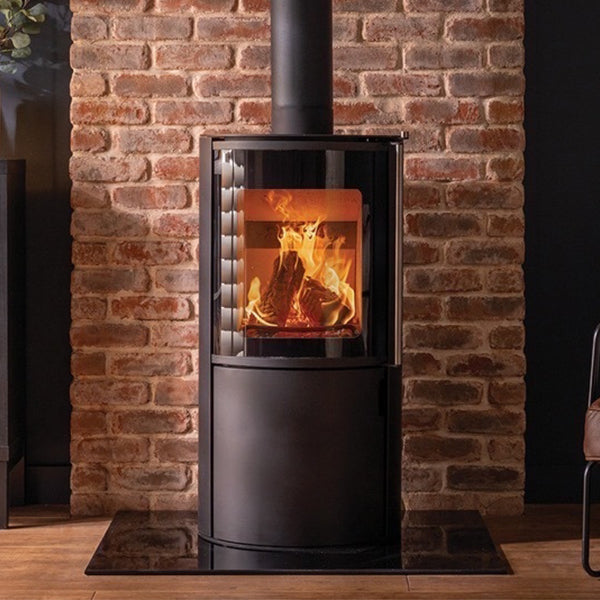

The FireFX Atlas 1 Wood Burning Stove offers a perfect balance of modern design and efficient performance, making it an excellent choice for a variety of living spaces. With its clean lines and practical features, it provides both warmth and visual appeal, while the convenient lower log storage compartment adds everyday functionality.
Ecodesign Compliant and DEFRA-exempt, the Atlas 1 is suitable for use in smoke control areas when burning wood. Delivering a nominal heat output of 5kW and an efficiency of 81% (A+ energy rating), it is designed to maximise heat output while keeping fuel consumption low. The convector heat system and integral heat shields help distribute warmth evenly throughout the room, making it ideal for small to medium sized spaces.

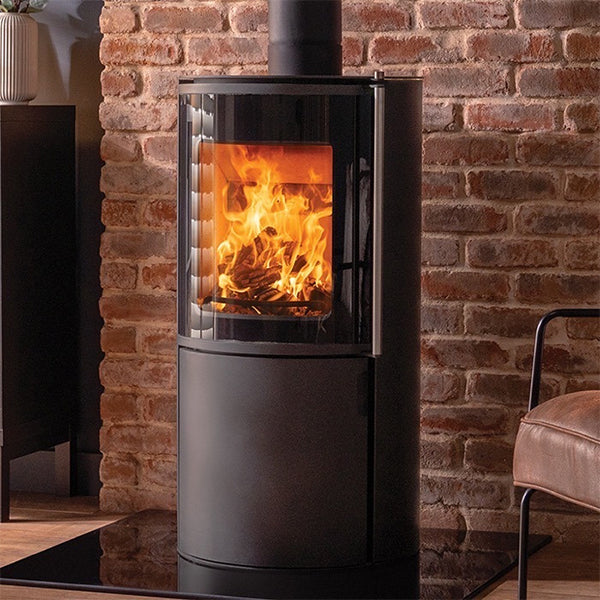

A single front glass window offers a clear view of the flames, enhanced by Cleanburn and Airwash systems to maintain a cleaner glass for longer. Designed with ease of installation and use in mind, the Atlas 1 is 12mm hearth compatible and features an integrated external air connection. It also includes a 150mm (6”) flue outlet with both top and rear options, making it a versatile and efficient heating solution for modern homes.
- DEFRA approved
- Eco Design 2022 ready
- Nominal heat output of 5Kw
- 81% efficiency rating
- Single front viewing window
- Flue outlet 150mm (6”)
- Top or rear flue
Technical
| Code | 732-076 |
| Heat Output | 5Kw |
| Efficiency | 81% |
| Energy Efficiency Class | A+ |
| Width | 510mm |
| Height | 984mm |
| Depth | 450mm |
| Weight | 99Kg |
| Flue Diameter | 150mm (6") |
| Flue Outlet | Top or Rear |
| DEFRA Approved | Yes |
| Eco Design Ready | Yes |
| Cast Iron Or Steel | Steel |
| Maximum Log Length | 250mm |
| Suitable For 12mm Hearth | Yes |
| Distance To Combustibles | |
| Side | 300mm |
| Rear | 125mm |
