Parkray 66 | 77 | 88 - Fire Bars | FULL SET | 130086 & 130087

This is a FULL SET of cast iron fire bars to fit a Parkray 66 / 77 / 88 fire.
We offer a large discount on full set fire bar purchases.

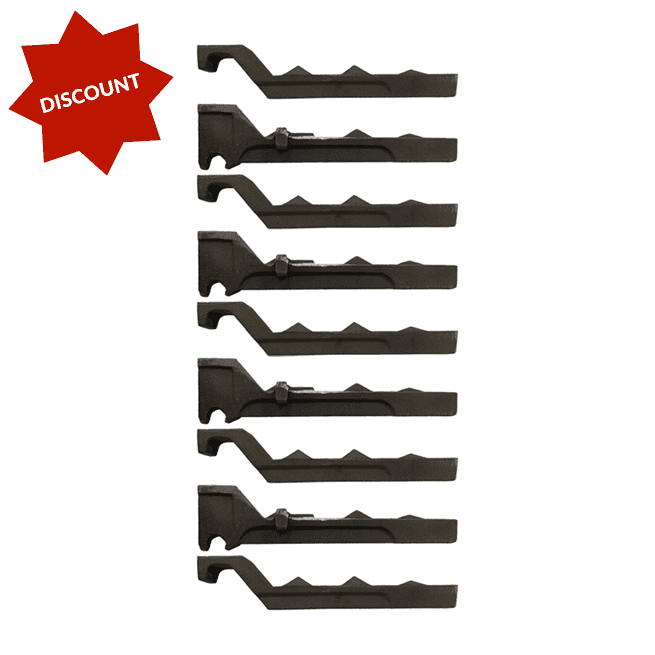

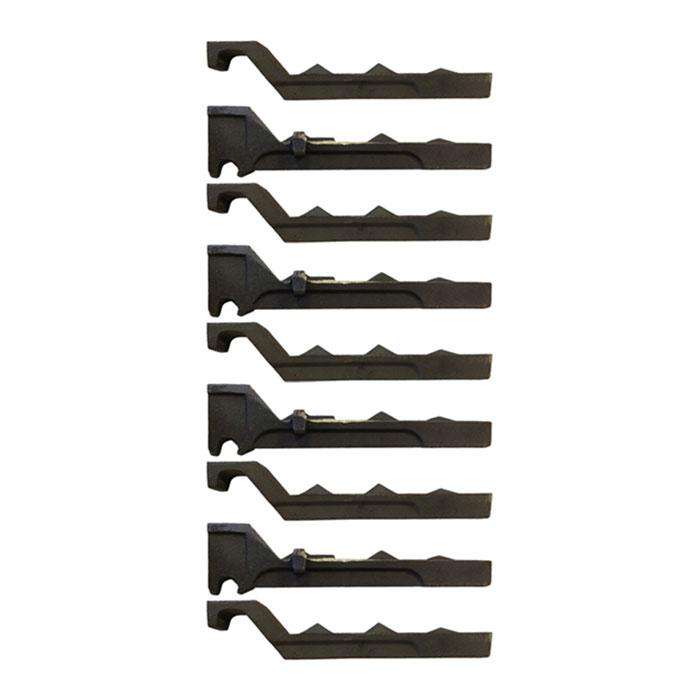

This set consists of 9 (nine) fire bars in total:

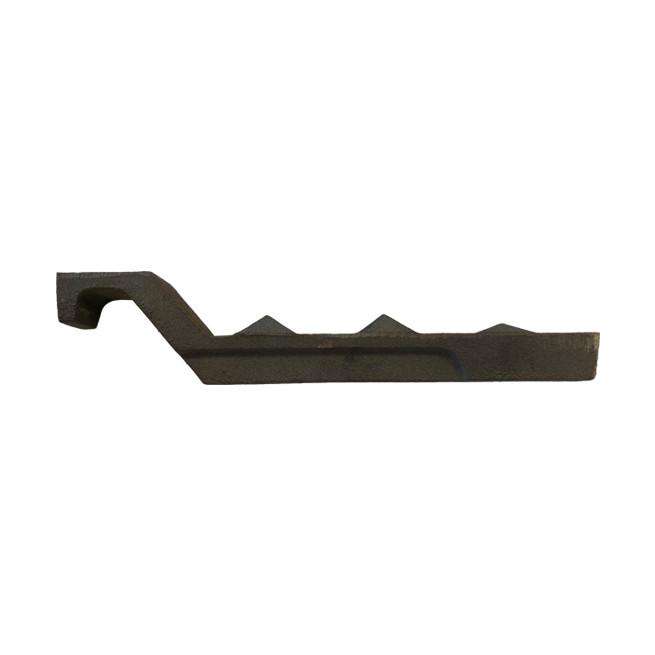

5 x 130086 - Parkray 66 | 77 | 88 High Lift Fire Bar

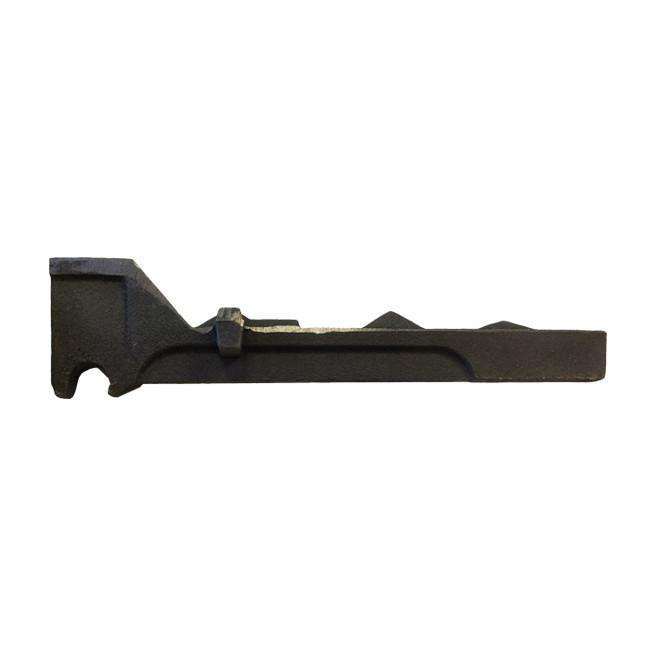

4 x 130087 - Parkray 66 | 77 | 88 Low Lift Fire Bar

Dimensions
Length: 250mm | 10" (inches)
Fits Models
  • 36F Consort
  • 66 Caprice, 66 Chevin, 66 Chiltern, 66 Classic, 66 Consort
  • 77 Caprice, 77 Chevin, 77 Chiltern, 77 Classic, 77 Consort
  • 88 Caprice, 88 Chevin, 88 Chiltern, 88 Classic, 88 Consort
  • More Information

    Firebars are also known as Grate Bars, Bottom Bars or Riddling Bars.

    Fuel is placed on top of these bars for burning. There are usually studs on the top of a fire bar so that when they are riddled (turned), a gap is created for ash to fall through into a collection pan. These 'studs' create an almost sieve effect and stop the parts of the fuel still active from falling through with the ash.

    There are usually two different types of firebars in the bottom of appliances. These are known as High Lift & Low Lift bars (also known as Big End & Small End bars). If you imagine the top of a castle wall, the High Lift (small end) bars sit on the highest part of the wall, and the Low Lift (big end) bars sit on the low part of the wall.

    Over time, firebars tend to warp and stretch with the heat. If you replace only a few of your bars at a time, you run the risk of riddling problems. Your brand new bars may be slightly smaller than your 'used' bars that have warped and stretched with heat over time. This may cause your de-ashing mechanism to not move smoothly, or not move at all.

    Click here to learn more about this product
    Estimated 7-10 Days Delivery

    £58.00 incl. VAT
    Maximum quantity available reached.

    • american express
    • apple pay
    • diners club
    • discover
    • google pay
    • maestro
    • master
    • paypal
    • shopify pay
    • unionpay
    • visa
    Product Information

    This is a FULL SET of cast iron fire bars to fit a Parkray 66 / 77 / 88 fire.
    We offer a large discount on full set fire bar purchases.

    This set consists of 9 (nine) fire bars in total:
    5 x 130086 - Parkray 66 | 77 | 88 High Lift Fire Bar
    4 x 130087 - Parkray 66 | 77 | 88 Low Lift Fire Bar

    Dimensions
    Length: 250mm | 10" (inches)
    Fits Models
  • 36F Consort
  • 66 Caprice, 66 Chevin, 66 Chiltern, 66 Classic, 66 Consort
  • 77 Caprice, 77 Chevin, 77 Chiltern, 77 Classic, 77 Consort
  • 88 Caprice, 88 Chevin, 88 Chiltern, 88 Classic, 88 Consort
  • More Information

    Firebars are also known as Grate Bars, Bottom Bars or Riddling Bars.

    Fuel is placed on top of these bars for burning. There are usually studs on the top of a fire bar so that when they are riddled (turned), a gap is created for ash to fall through into a collection pan. These 'studs' create an almost sieve effect and stop the parts of the fuel still active from falling through with the ash.

    There are usually two different types of firebars in the bottom of appliances. These are known as High Lift & Low Lift bars (also known as Big End & Small End bars). If you imagine the top of a castle wall, the High Lift (small end) bars sit on the highest part of the wall, and the Low Lift (big end) bars sit on the low part of the wall.

    Over time, firebars tend to warp and stretch with the heat. If you replace only a few of your bars at a time, you run the risk of riddling problems. Your brand new bars may be slightly smaller than your 'used' bars that have warped and stretched with heat over time. This may cause your de-ashing mechanism to not move smoothly, or not move at all.
