Parkray 99 Fire Bars | FULL SET | 130081 & 130082

This is a FULL SET of cast iron fire bars to fit a Parkray 99 fire.
We offer a large discount on full set fire bar purchases.

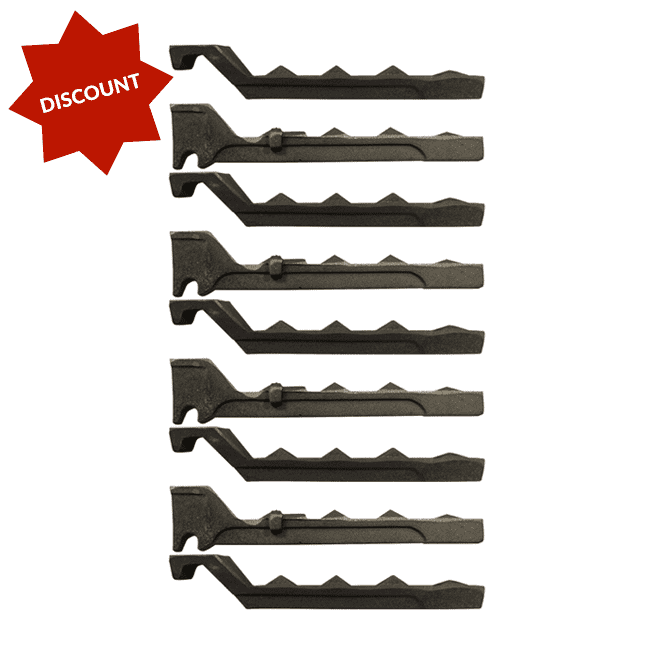

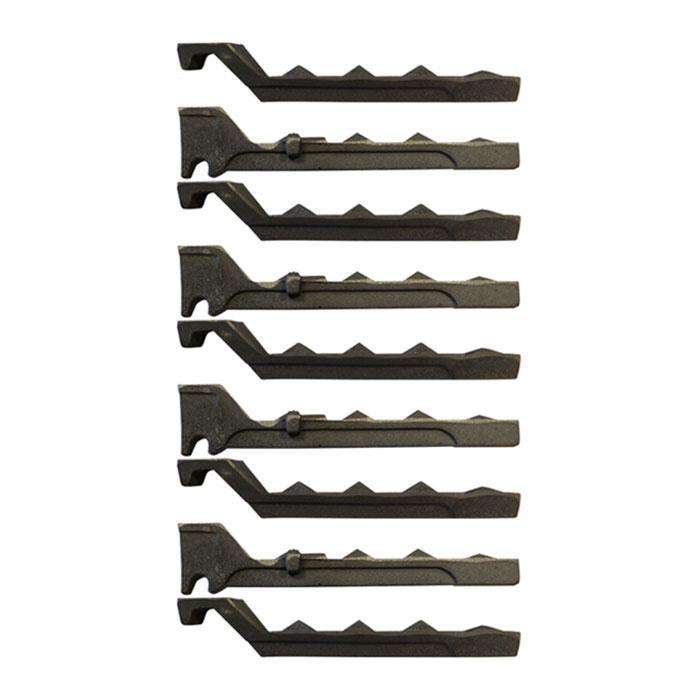

This set consists of 9 (nine) fire bars in total:

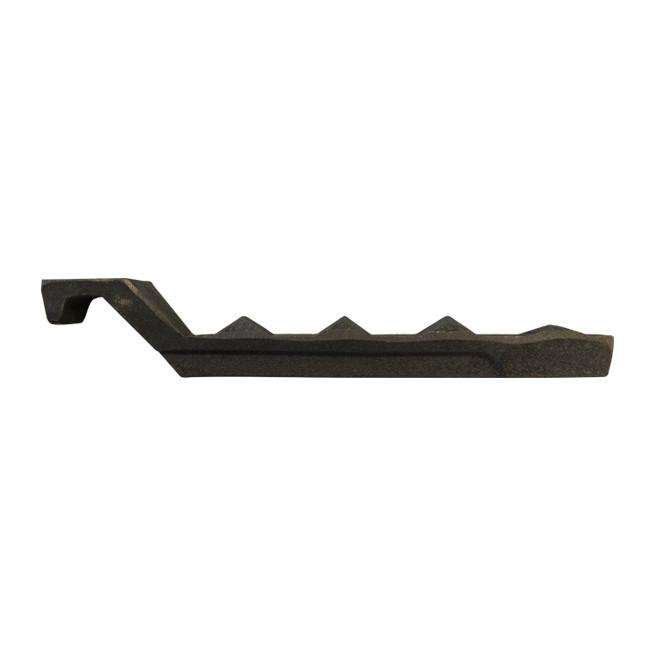

5 x 130082 - Parkray 99 High Lift Fire Bar

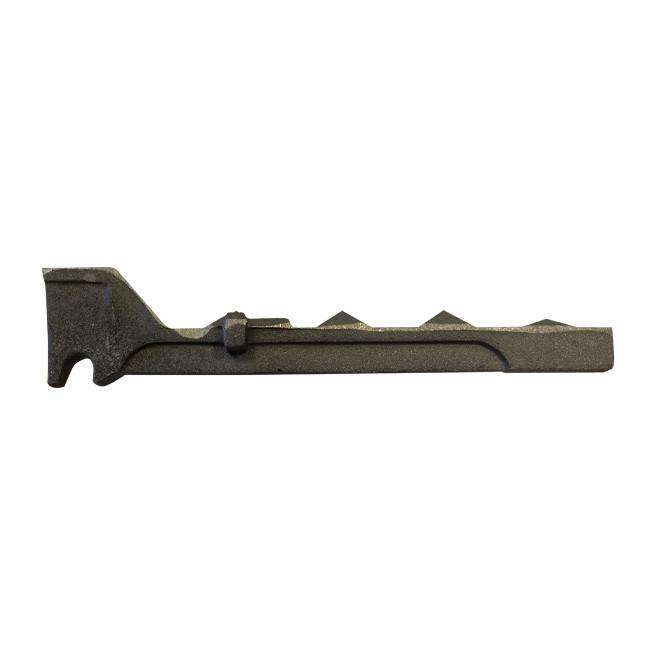

4 x 130081 - Parkray 99 Low Lift Fire Bar


Dimensions

Length: 300mm | 12" (inches)


Fits Models
  • 99 Caprice
  • 99 Chevin
  • 99 Chiltern
  • 99 Classic
  • 99 Consort
  • 99 Cumbria

More Information

Firebars are also known as Grate Bars, Bottom Bars or Riddling Bars.

Fuel is placed on top of these bars for burning. There are usually studs on the top of a fire bar so that when they are riddled (turned), a gap is created for ash to fall through into a collection pan. These 'studs' create an almost seive effect and stop the parts of the fuel still active from falling through with the ash.

There are usually two different types of firebars in the bottom of appliances. These are known as High Lift & Low Lift bars (also known as Big End & Small End bars). If you imagine the top of a castle wall, the High Lift (small end) bars sit on the highest part of the wall, and the Low Lift (big end) bars sit on the low part of the wall.

Over time, firebars tend to warp and stretch with the heat. If you replace only a few of your bars at a time, you run the risk of riddling problems. Your brand new bars may be slightly smaller than your 'used' bars that have warped and stretched with heat over time. This may cause your de-ashing mechanism to not move smoothly, or not move at all.



Click here to learn more about this product
£41.45 incl. VAT £58.50
Maximum quantity available reached.

  • american express
  • apple pay
  • google pay
  • klarna
  • maestro
  • master
  • paypal
  • shopify pay
  • visa
Product Information

This is a FULL SET of cast iron fire bars to fit a Parkray 99 fire.
We offer a large discount on full set fire bar purchases.

This set consists of 9 (nine) fire bars in total:
5 x 130082 - Parkray 99 High Lift Fire Bar
4 x 130081 - Parkray 99 Low Lift Fire Bar


Dimensions

Length: 300mm | 12" (inches)


Fits Models
  • 99 Caprice
  • 99 Chevin
  • 99 Chiltern
  • 99 Classic
  • 99 Consort
  • 99 Cumbria

More Information

Firebars are also known as Grate Bars, Bottom Bars or Riddling Bars.

Fuel is placed on top of these bars for burning. There are usually studs on the top of a fire bar so that when they are riddled (turned), a gap is created for ash to fall through into a collection pan. These 'studs' create an almost seive effect and stop the parts of the fuel still active from falling through with the ash.

There are usually two different types of firebars in the bottom of appliances. These are known as High Lift & Low Lift bars (also known as Big End & Small End bars). If you imagine the top of a castle wall, the High Lift (small end) bars sit on the highest part of the wall, and the Low Lift (big end) bars sit on the low part of the wall.

Over time, firebars tend to warp and stretch with the heat. If you replace only a few of your bars at a time, you run the risk of riddling problems. Your brand new bars may be slightly smaller than your 'used' bars that have warped and stretched with heat over time. This may cause your de-ashing mechanism to not move smoothly, or not move at all.
